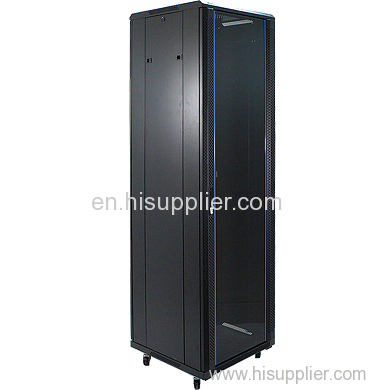

19" Floor Standing Network Rack Cabinet High Precision manufacturer from China SuperHighEnergy Technology(HK)CO.,LTD

Payment Terms:	T/T,L/C,WU
Place of Origin:	Guangdong, China (Mainland)

Product Detail

Means of Transport: Ocean,Land,Air

Packing: Assembled or Dis-Assembled

Brand Name: TESO

Material: SPCC Steel

Thickness: 2.0mm

Surface Painting: Degrease, Pure Water Cleani...

Production Capacity: 10000 per month

Delivery Date: 15-20days

Capacity: 18U, 22U,24U,37U,42U,

Body Color: RAL7035, RAL9004

Style: Standing

Standard: ETSI Standard, IEC297-2

1. 19 inch network cabinet for Telecommunication Equipments
2.Static Loading :800kgs
3.Size ,color and door are optional.

Product Description:

＊Exquisite design with precise dimension and craftsmanship .

＊Lockable door and side panels for system security .

＊Fully adjustable vertical mounting rails.

＊Swiveling wheels and legs can be jointly installed to withstand up to 800kgs maximum static load.

＊Several lockable wiring holes on top/bottom, size of the large hole at the bottom adjustable .

Standard:

Comply with ANSI/EIA RS-310-D,IEC297-2,DIN41494;PART1,DIN41494;PART7, ETSI standard.

Material:

SPCC high grade cold rolled steel .

Thickness:

Mounting profile :2.0mm,others :1.2-1.5mm

Loading capacity :

Static Loading :800kgs.

Surface painting :

Degrease ,acid pickling ,rust prevention and Parkerizing ,pure water cleaning ,static electricity plastic painting .Degree of protection :IP20.

Body Color:

RAL7035,RAL9004,etc.
